The UVIKON Simplicity Concept represents the first Spectrophotometer Series featuring Advanced Digital Signal Processing Technology. ADSP ensures reliable data acquisition, a superb sensitivity level to allow linear measurements even at high OD values, and a very low instrument noise. Uvikon XS in combination with the easy to use Windows compatible LabPower Junior software package supports the entire range of daily routine applications.

Benefits

100% symmetric true double beam technology for high data precision and stability
Rotating Mirror ( Chopper) System to achieve reliable data even in concentrated samples
Sample Compartment

140 mm depth, 332 mm width, 162 mm height, with 120 mm beam separation
Total and easy access: front top and back covers are quickly removable
Three point positioning of accessories for high reproducibility of results
Quartz windows at the beam entrance and exit to the sample compartment prevent the optics from being contaminated
Optical Design

Well proven true symmetric double beam optics with only 6 reflecting surfaces per beam
High-Energy diffraction Zeiss™ Monochromator Design using a holographic blazed grating with 1300 lines per mm
Very sensitive photodiode with a rotating all-reflective chopper mirror providing 100% energy in sample and reference beams plus dark current correction
External source bench providing thermal insulation with optical bench and isolation of the whole photometric assembly against contamination by ozone emitted by deuterium lamp
Optical bench base manufactured to a tolerance of 0.01 mm in 1 meter
Complete optical system sealed against atmospheric contamination from dust and volatile compounds

The UVIKON concept represents the first spectrophotometer serie featuring Advanced Digital Signal Processing technology. ADSP ensures reliable data acquisition, a superb sensitivity level to allow linear measurements even at high OD values, and a very low instrument noise. UVIKON in combination with the easy to use Windows compatible LabPower, UV VISion or UV VISion Pharma software packages supports the entire range of daily routine applications.

Benefits:
- 100% symmetric true double beam technology for high data precision and stability.
- Rotating mirror ( chopper) system to achieve reliable data even in concentrated samples.
With its large variety of accessories the UVIKON fulfils all instrument requirements for advanced and routine applications.

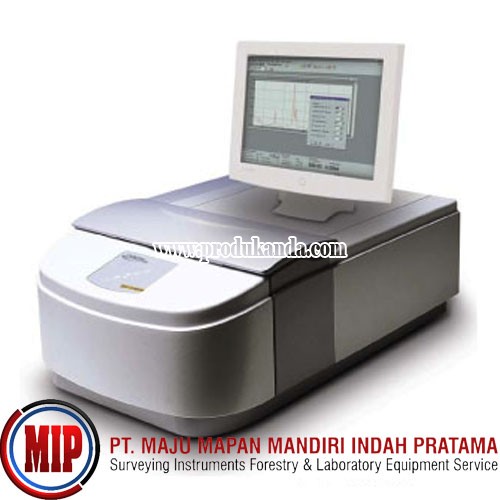

UVIKON XS
- Range 190-1100nm
- 100% symmetric double beam optics
- Fixed 1.8nm bandwidth
- Pharmacoepia compliant
- High quality Zeiss optics
Ref 70/ 99-90289, UVIKON XS delivered with LabPower software
Ref 70/ 99-90287, UVIKON XS, delivered with Uv VISion software
Gross weight : 52Kg ( with palette)
Dimensions : 120 x 80 x 53
