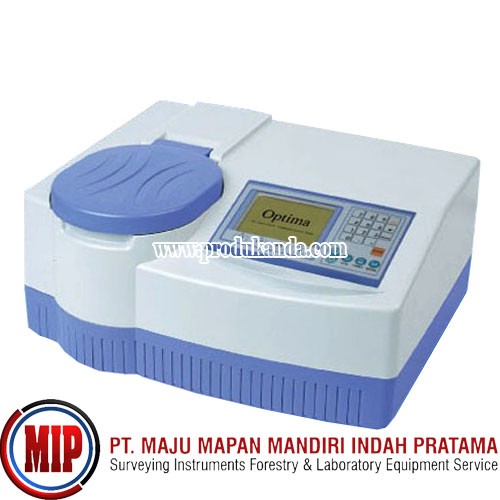

SP-3000plus implements high precision/ resolution with high precision Sine Driver Monochromator and stable voltage and signal process by adopting Noise Reduction Circuit.

SP-3000plus can be operated by standalone mode or PC control mode. The software included in SP-3000plus can be used in general quality and quantity analysis.
Furthermore, OptiView ( PC interface windows program) provides a more convenience for user in the various application fields.

Specification
Wavelength Range 190nm~ 1100nm
Spectral Bandwidth 1.0nm
Wavelength Display Readable to 0.1nm
Wavelength Accuracy ± 0.5nm( with automatic wavelength correction)
Data Bunching Interval 1nm
Wavelength Reproducibility ± 0.1nm
Stray Light Less than 0.05% ( at 220nm and 340nm)
Photometric Range Absorbance: 00.3~ 3.0Abs
Photometric System Split-beam Optics, Dual detectors
Photometric Accuracy ± 0.002Abs. at 0.5Abs. ± 0.005Abs. at 1Abs
Photometric Reproducibility ± 0.002Abs at 1.0Abs.
Baseline Correction Automatic
Wavelength Slew Rate About 5000nm/ min
Light Source 6V 10W Tungsten halogen lamp and D2 lamp
Monochromator Modified Czerny-turmer type with 1200 limes/ mm holographic grating.
Auto Zero Function By a single stroke of Soft key
Display Graphic LCD 6 " , adjustable viewing angle and contrast control
Detector silicon photo-diode
Sample Compartment Automatically rotative 8 position cell holder
Interface Ports RS-232C and Centronics ports
Power Requirements 220-240VAC, 50/ 60Hz
Dimensions 514( W) x 243( H) x 430( D) mm
Net Weight 16.0kg
