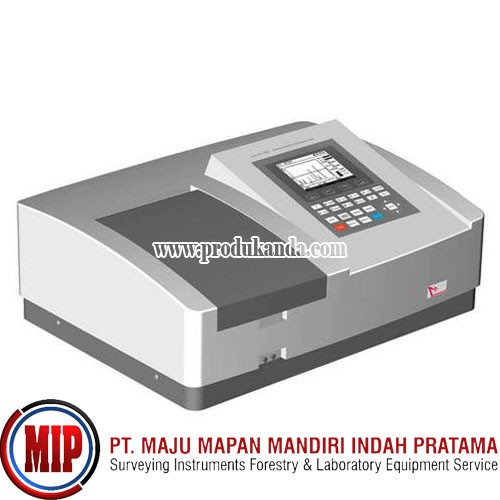

DOUBLE BEAM SPECTROPHOTOMETER, MAPADA UV-6300 STAND ALONE
Manufacturer : Shanghai MAPADA Instruments Co., Ltd
ISO 9001: 2000 and CE- Certified TUV Rheinland GmbH, Germany

MAPADA UV- 6000 Series provides excellent performance for measurements in the range of 190nm to 1100nm. They are suitable for pharmaceutical, biochemical and clinical lab applications as well as routine applications such as quantitative analysis, kinetics, spectrum scanning, multiple components and DNA/ protein. All Mapada spectrophotometer features high performance sealed optics mounted on a stable machined platform. The innovative optical layout and state of art mono-chromator with high grade blazed holographic grating ensure accuracy. Its integrated design assures long term stability and durability.
All instruments provide excellent performance for measurements.
UV-6300 has 1.0nm fixed bandwidth, the double beam detectors measure sample and reference respectively and simultaneously to optimize measurement accuracy.

System Benefits
• Easy operation and reliable optical system ensure fast, accurate results
• Small size saves valuable lab space
• Versatile accessories enhance sampling and increase productivity
• Low cost to stretch your budget
• The time required to analyze samples more quickly and in a lot more analysis
• There is little maintenance

FEATURES
• Double beam
• Sealed and solvent-resistant tactile keypad with alpha-numeric entry for user file names and user entry of units
• Pre-aligned deuterium lamp for easy lamp replacement
• Lamp usage and the status of the lamps can be monitored.
• Powerful built-in software including sophisticated utility programs
• Full print-out of graphs and tables of results with popular printers, such as HP or Epson DeskJet
• Real-time clock for date and time stamping of results
• Data Download-to-PC software for stand-alone models ( optional)
• Machine can be controlled by application software through USB port to PC connection. ( optional)

Technical Data Specifications:
Model UV-6300
Wavelength Range 190-1100 nm
Wavelength Accuracy ± 0.3 nm
Photometric Range 0-200% T , -0.3 - 3A, 0-9999 Conc
Photometric Accuracy d 0.3% T or ± 0.002A@ 1A
Photometric Noise 0.0005 A
Photometric Drif or Stability ± 0.001 A/ hour at 500 nm
Spectral Bandwidth 1.0 nm
Stray Light d0.05% T at 220 and 340 nm
Display 5 Inches LCD ( 320* 240 dots )
Source Lamp Tungsten Halogen lamp & Deuterium lamp
Detector Hamamatsu Photodiode
Output USB Port Parallel Port ( printer )
Optical System Double Beam, Grating 1200 lines/ mm
Wavelength Repeatability 0.3 nm
Scanning speed Hi, Med, Low, Max 3000 nm/ min
Wavelength Setting AUTO
Photometric Repeatability 0.15% T
Baseline Flatness ± 0.001A ( 200-1000 nm)
Photometric Mode Absorbance, % Transmittance, Concentration or Quantitative
Keypad 22 Membrane keypad Sealed and solvent-resistant tactile keypad
Standard Cell Holder Standard 10mm single cell holder ( 2 pcs )
Sample Compartment Standard 10mm path-length cuvette
Power Requirement AC 110/ 60Hz or AC 220/ 50Hz
Dimensions ( W* D* H) 600* 450* 200mm
Weight 22kg
