Maximum analysis flexibility with high speed wavelength scanning across the UV and visible spectrum

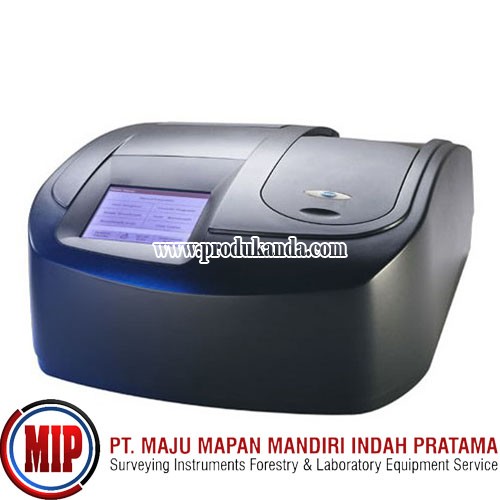

The Hach DR 5000 UV-Vis Laboratory Spectrophotometer can test for all of the parameters listed on page 3. All of the chemistries and supplies needed for these tests are available from Hach.

Easily Add New Analytical Methods
As Hach releases new test methods and chemistries, the DR 5000 spectrophotometer can easily be updated via a USB memory stick.

Stability and Accuracy
The design of the DR 5000 spectrophotometer ensures measurements are accurate, precise, and stable over time, resulting in repeatable results.

DR 5000 UV-Vis Spectrophotometer Performance Specifications
Operating Mode: Transmittance ( % ) , Absorbance and Concentration
Source Lamp: Tungsten ( visible) ( 2000 h)
and Deuterium ( UV) ( 1100 h)
Wavelength Range: 190 - 1100 nm
Wavelength Accuracy: ± 1 nm
Wavelength Resolution: 0.1 nm
Wavelength Calibration: Automatic
Wavelength Selection: Automatic, based on method selection
Scanning Speed: One complete scan per minute in 1 nm steps
Spectral Bandwidth: 2 nm
Photometric Range: ± 3.0 A in the wavelength range 200 - 900 nm
Photometric Accuracy: 5 mA at 0.0 - 0.5 A
1% at 0.50 - 2.0 A
Photometric Linearity: 3.3 Abs

Physical and Environmental
Width: 17.7 in ( 450 mm)
Height: 7.9 in ( 200 mm)
Depth: 19.7 in ( 500 mm)
Weight: 34.2 Ibs ( 15.5 kg)
Operating Requirements: 10 - 40 ° C ( 50 - 104 ° F) , max. 90% relative humidity ( non-condensing)
Storage Requirements: -25 - 60 ° C ( -13 - 140 ° F) max. 80% relative humidity ( non-condensing)
